High speed machining of extremely long workpieces is made easier with these fixed-table, traveling-column machine models. Table lengths start at 79” and go up to 212”, with CAT-40 or CAT-50 spindle tapers.
We have two Fadal 4020 3 axis vertical machining centers with bed sizes up to 40" x 20" x 30" and 21 tools per machine to provide you with quality machining for small to large parts. We also have Mazak VTC 200 Vertical Mill 120” x 20” x 20” which is ideal for long parts.

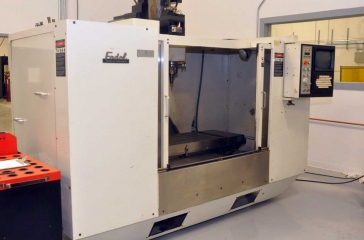

The Fadal 4020 has a 22/15 HP Motor with 10,000 RPM Spindle that accepts CAT-40 tooling. The machine travels: X-axis - 40"; Y-axis - 20"; Z-axis (extended) - 28". 20" x 48" T-slotted table; Table load capacity is 1,500 Lbs.; 900 IPM X/Y Rapid traverse rates. Programable 21 Position ATC. Machine also includes pallet changing system and COOL POWER refrigerated coolant system.

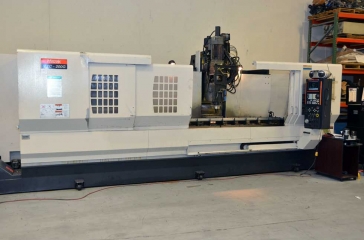

The Mazak VTC 200G has a 144" table and a 28 tool ATC. What sets this machine apart is the table is stationary while the head wit all the tools moves. This functionality is what makes it ideal for milling and drilling long tubing or long flat plate. We use it to to fabricate long parts that would otherwise have to completed by hand in the past.
The Mazatrol machine control makes it easy for our operators to program parts. For simple parts, they can simply be programmed right on the control with an easy to follow "conversational" programming language. For longer parts we can program off the machine with programs like Mastercam.
